Automated tube labeling saves time and eliminates manual errors

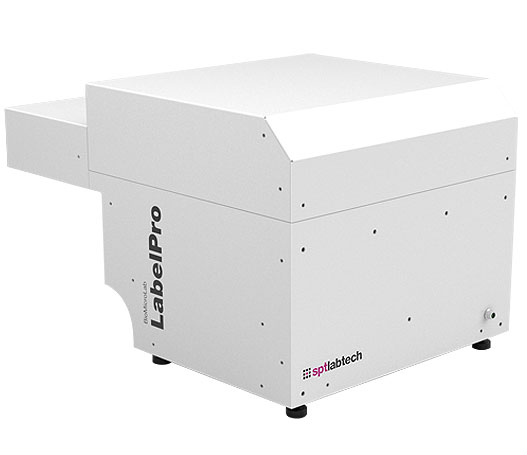

The BioMicroLab LabelPro automates the time intensive and error-prone process of printing and applying labels by hand. Available as a standalone printer or integrated with a BioMicroLab XL Tube Handler for automating labeling alongside other tube handling tasks, the BioMicroLab LabelPro applies labels to microtubes, cryovials, glass vials and Falcon conical centrifuge tubes. Using included software, operators can design uniform or unique labels with barcodes, text or symbols using any font, and easily repeat labeling projects.

Easily configurable and integration-ready
Easily configurable and integration-ready

The BioMicroLab LabelPro is available as a standalone labeler, or integrated with an XL Series Tube & Vial Handler for automated label printing and application. When attached to an XL Series Tube & Vial Handler, the LabelPro  is easily configurable as either a dedicated tube labeler or integrated into workflows involving volume detection, capping, liquid transfer or reformatting.

Flexibility to design and print 1D & 2D barcodes to your specifications
Flexibility to design and print 1D & 2D barcodes to your specifications

BioMicroLab’s intuitive software enables researchers to easily design and print barcodes, human readable text, images, and symbols using any font. It also provides flexibility to print either identical or unique labels. Project based workflows enable easy duplication of common labeling jobs, streamlining workflows and saving valuable researcher time.

Fast start up and walk away capabilities
Fast start up and walk away capabilities

With easy to load ribbon and label materials, and automated, precise, labeling and orientation of all tubes in the rack, the BioMicroLab LabelPro enables researchers to quickly design a label, start a project, and return to perfectly labeled tubes.

Creates high resolution and durable labels for maximum usability
Creates high resolution and durable labels for maximum usability

The high quality printing resolution of 300-600 dpi ensures label readability and reduces errors. The labels are designed to withstand LN2 (-196°C) and freezer (-80°C) environments, and the thermal printer resin provides exceptional DMSO and alcohol chemical resistance for durability.

Small footprint maximizes available space
Small footprint maximizes available space

With a compact footprint, adding just 10″ (254mm) of depth to an XL9 or XL20, and 7.5″ (190.5mm) of depth to an XL100 or XL200, the LabelPro maximizes available space, enabling efficient laboratory layout - without compromising on capabilities.

Compatible with a wide range of labware for exceptional flexibility
Compatible with a wide range of labware for exceptional flexibility

The XL LabelPro is compatible with a wide range of microtubes, cryovials, glass tubes, and Falcon conical centrifuge tubes. When operated in standalone mode, any vial up to 1″ (25mm) diameter can be labeled. When attached to an XL Series Tube Handler (XL9, XL20, XL100, XL200), it enables labeling of all tubes and vials compatible with those instruments.

Technical Specification

Scroll to view more information

Dimensions When attached to an XL Series Tube Handler, the module adds
10″ of depth to an XL9 or XL20, and 7.5″ of depth to an XL100 or XL2000.
If your lab bench is not deep enough, we offer a powder coated sheet metal
Benchtop Extender which supports the labeling module.

XL9 + LabelPro: 18” W x 27” D x 16” H (46 x 69 x 41 cm)

XL20 + LabelPro: 28.5” W x 31” D x 16” H (72 x 79 x 41 cm)

XL100 + LabelPro: 40” W x 34” D x 28” H (102 x 86 x 71 cm)

XL200 + LabelPro: 48″ W x 38″ D x 34″ H (122 x 97 x 86 cm)
Electrical 100-240VAC ~ 50/60Hz
Weight The LabelPro module itself weighs 22.5 lbs.

When combined with an XL Series tube handler,
weight will vary based on the modules installed on the tube handler.
Operating Environment 50° – 95° F (10° – 35° C)

Label Features

  • Labels designed for vapor phase liquid nitrogen (-196°C) and freezer (-80°C) environments
  • White or color coded labels
  • Compatible with ceramic labels for permanent application
  • Easy to load ribbon and label materials
  • Fast start up and unattended operation
  • All electric operation; no compressed air
  • Small footprint with convenient design
  • Labeling module can be removed when not in use
