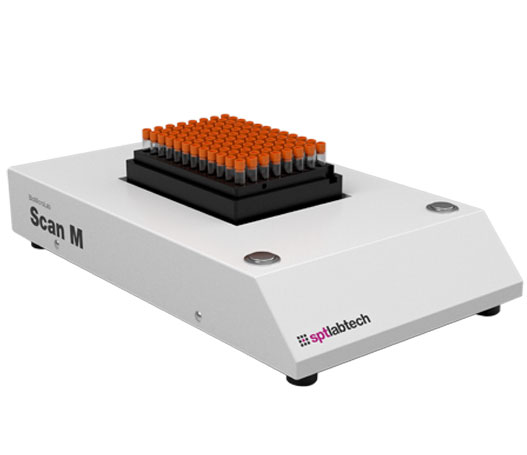

BML-product-Scan-M---gallery-1

Easy to use, and integration-friendly single tube or whole rack scanning

The BioMicroLab SampleScan Mini is compatible with a range of 2D microtubes and cryotubes and scans a 96-format rack in 4-5 seconds. Its adjustable output file includes 2D tube barcodes, tube positions, and rack ID data for output to LIMS or other systems, and researchers benefit from the ability to scan single tubes as well as full racks.

Efficiently captures Rack ID
Efficiently captures Rack ID

2D embedded barcodes on the base of racks are automatically captured, and with an optional 1D linear barcode reader that attaches to any side of the instrument, the 1D rack ID is scanned and decoded.

Compact footprint without compromising capabilities
Compact footprint without compromising capabilities

The compact footprint makes the device suitable even for crowded environments, and enables efficient laboratory layout.

Scan single tubes or full racks
Scan single tubes or full racks

Scan a rack or simply hover a single tube over the scanner to decode a single tube.  For single tubes, the single tube scan feature sends the decoded barcode directly to any open application, while user-friendly software is used for full rack scanning.

Rack orientation guide enables precise positioning
Rack orientation guide enables precise positioning

An indicator shows the operator exactly where to place the rack for successful data capture every time.

Compatible with a wide variety of labware
Compatible with a wide variety of labware

The SampleScan Mini decodes 2D barcodes on the base of cryotubes, cryo vials, glass vial, and others in a wide range of ANSI/SLAS standard labware.

Intuitive software interface
Intuitive software interface

BioMicroLab’s SampleScan Software captures the 2D barcode image, decodes the barcode, and outputs the data in a user configurable .csv (excel-like) file format for easy integration with your sample database system.

Reliable, easy to use scanning systems

The BioMicroLab SampleScan full rack and single tube barcode scanners are easy-to-use, reliable, and integrate well with other systems.

BioMicroLab’s user-friendly SampleScan instruments scan, decode and output the unique ID number encoded in the two-dimensional barcode on the bottom of the sample tubes and the one-dimensional barcode on the side of the rack. The SampleScan Software captures the 2D barcode image, decodes the barcode(s), and outputs the data in a user configurable .csv (excel-like) file format for easy use with your sample database system.

This easy-to-use Windows based application provides point-and-click control of the scanner and an on-screen display of the barcode image with colorful visual scan status for quick confirmation of the scanning process. Barcodes are also displayed on the screen so the user can quickly evaluate any non-decodable barcodes.

  • Software is configurable for a variety of rack formats
  • Automatically captures rack IDs (with 1D Auto Model)
  • Data output files are user-defined and customizable (.csv format)
  • Rescan or manually edit barcode data
  • Single tube scan displays 2D code on screen and pastes into any open application
  • Network connectivity with TCP/IP

Compatible with:

  • 12, 24, 48, 96 and 384 ANSI/SLAS format tube racks
  • Honeycomb style racks
  • Single tubes
  • The SampleScan Mini scans and decodes a rack Scans and decodes a rack in 4-5 seconds
  • Single tube scan feature sends decoded barcode to any application
  • Scanner-based decoding technology
  • Missing tube detection
  • Scans 2D embedded barcode on the base of the rack
  • Scans 1D linear barcode Rack ID (1D Auto Model) from any side
  • Compatible with ANSI/SLAS standard tube racks and more
  • LIMS compatible (SampleScan software outputs .csv to send to LIMS)

Technical Specification

Scroll to view more information

Dimensions Mini: 10.5″ D x 6.25″ W x 2.0″ H (27 x 16 x 5 cm)
Mini 1D Auto: 10.5″ D x 7.75″ W x 4.0 H (27 x 20 x 10 cm
Electrical 100-240VAC ~ 50/60Hz, 1.2A; Universal power supply (or supplies) with US, UK, Euro or user specified
Weight Mini: 3.75 lbs (1.7 kg)
Mini 1D Auto: 4.35 lbs (1.97 kg)
Operating Environment 42° – 95° F (5° – 35° C)
System Requirements Operating System: Windows 10, 8, 7
USB Ports: One (Mini); Three (Mini with 1D Auto)
