Purging Self-primed tubing

When you have completed your experiment, you will need to purge the AFR tubing before
removing it. To purge Self-primed tubing:

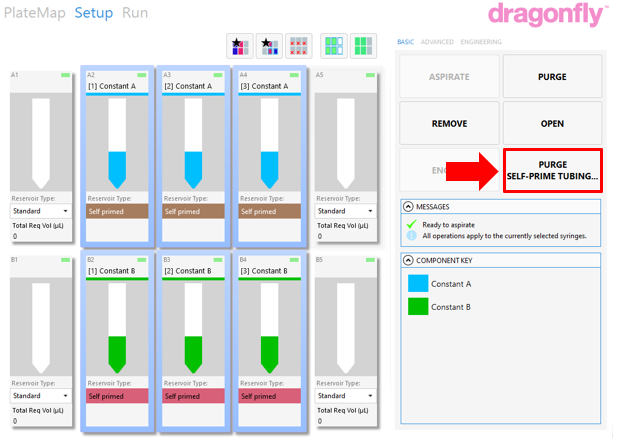

1. Go to the Setup page on any layer and click on ‘Purge Self-prime Tubing’ as shown in      the following screenshot:

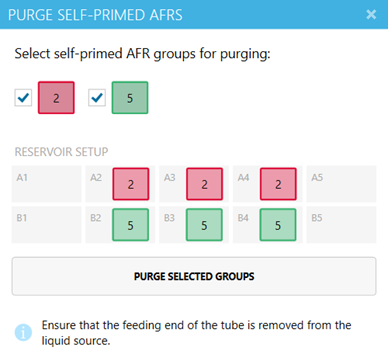

2. In the dialog, select the Self-primed AFR groups that require purging.
3. Remove the supply tubing from the source reagent container.
4. Click ‘Purge Selected Groups’.
