      Adjusting the airflow to a sender or receiver - 6.0

      To adjust the air flow rate of a Sender or Receiver:

        1. Remove the blue cover cap on the back of the device.

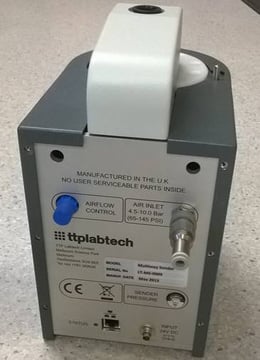

          Sender air 1

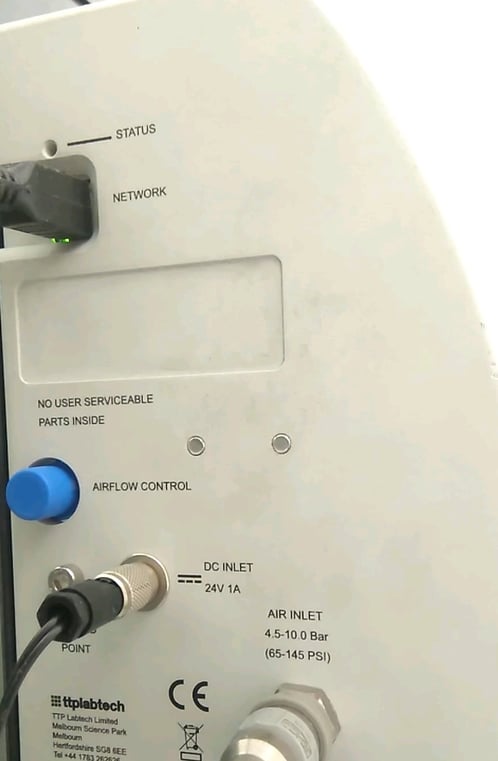

          receiver air 1

      1. Adjust the flow restrictor fitting by hand. Turn it clockwise to restrict the airflow, counter clockwise to increase the airflow.

      sender air 2
      3.     Refit the cover cap.
