Software overview - 11.0

This manual describes chameleon software version 1.13.

The software guides you through a series of screens which present options or request appropriate actions at each step in the grid preparation process.

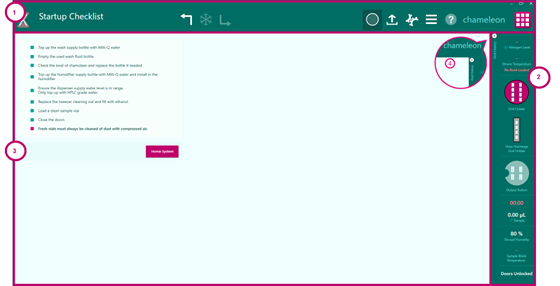

The user interface is divided into 4 zones:

  1. The toolbar at the top of the chameleon software window contains buttons concerned with high level functionality.
  2. The status panel on the right displays environmental information from the system.
  3. The contents of the main central area vary according to the step of the workflow.
  4. The grid history “flip out” panel displays information about grids throughout the freezing session.
