Automated sample preparation zone - 7.4 Humidity shroud assembly

The dispense and plunge steps take place in the high humidity environment within the shroud assembly.

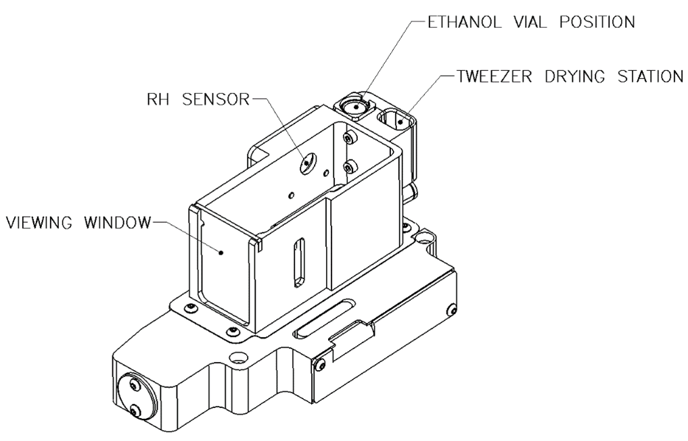

humidity shroud

A clean ethanol vial must be fitted in the position shown during initial setup.

The shroud is fitted with LED illumination to help you confirm that the grids have been successfully placed into the storage button.
